Name: Rotating Outdoor Led Screen Rental Mobile Led Screen Rental
Brand: Hunan Caiyi Photoelectric Technology Co., Ltd
SKU: Moving Structure
Price: 999 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CAIYI

Certification: CE, FCC, ROHS

Model Number: Moving Structure

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $999/set

Packaging Details: Simple box, waterproof cabinet, die-cast aluminum cabinet

Delivery Time: 3-5days

Payment Terms: T/T, L/C, Western Union, Paypal

Supply Ability: 1000pieces per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Rotating Outdoor Led Screen Rental, Automotive Outdoor Led Screen Rental, Automotive Mobile Led Screen Rental


Type:	Other Machining Services	Material Capabilities:	Aluminum, Steel Alloys
Micro Machining Or Not:	Micro Machining	Material:	Aluminum Alloy
Application:	Automotive	Warranty:	1year

Type:	Other Machining Services
Material Capabilities:	Aluminum, Steel Alloys
Micro Machining Or Not:	Micro Machining
Material:	Aluminum Alloy
Application:	Automotive
Warranty:	1year

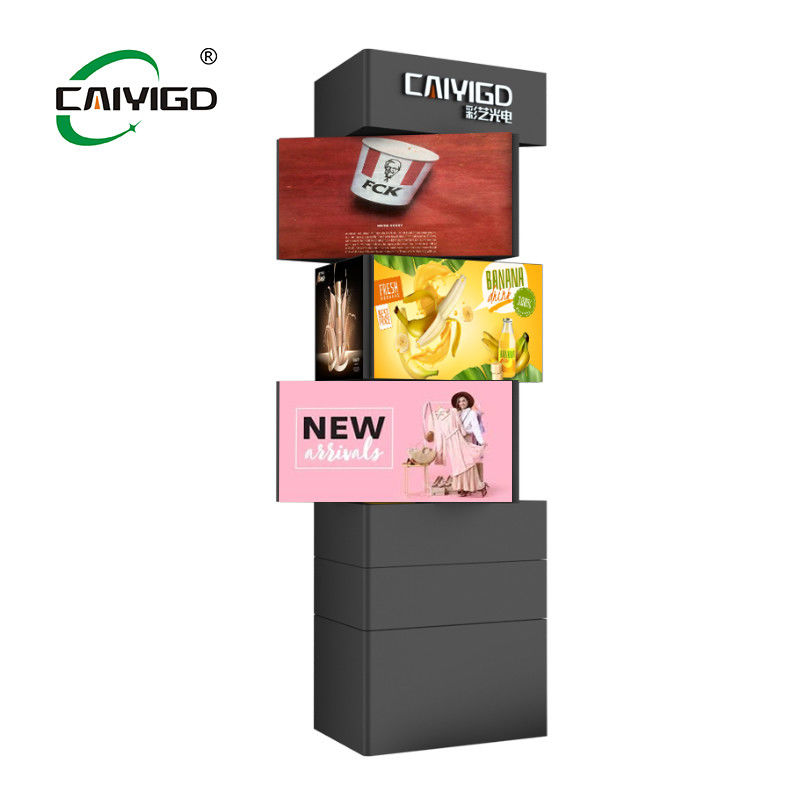

Rotating Outdoor Led Screen Rental Mobile Led Screen Rental

Rotating screen instruction

Rotating screen is a machine, electricity, screen integrated rotation of multimedia motion display equipment, its main principle is through the motor drive screen (steel frame) in the rotating frame rotates 360 degrees or at any Angle.

Rotating motion and display content can be asynchronous, also can be controlled by software program, mechanical rotation and screen video, text content synchronization.

The rotating screen mainly includes the following parts: rotating base, rotating body (display frame, motor, reducer, driver,

rotating bearing, central shaft, conductive ring, mesh ring), controller, remote control, display screen, etc.

External equipment: other control software and other control equipment.

The significance of the rotating screen is to add motion to the multimedia equipment, so that the form and choice of multimedia become more colorful and richer.

Technical features:The rotating shaft core and the steel frame of the screen body can be manufactured and installed separately, or it can be

manufactured as a whole. Multiple rotating bodies can be linked, or monomer can move independently, and arbitrary polygon and circle can be customized.

Control features: power back to zero program, graphic and video synchronization program. Remote control, manual switch, external mobile phone, tablet and other central control.
Technical parametersRotary shaft core integration:

Rotating core

			Name

			Parameter number

			Sheet metal, steel frame material

			Steel pipe and plate: Q235, 304 stainless steel optional

			Accuracy of mechanical installation

			0.01-1.00

			Stepper, servo motor + reducer

			60-180 flange optional, power: 200w-7500w, suitable for reducer

			Motor repeated positioning accuracy

			0.01-0.03

			Mechanical rotation positioning accuracy

			0.01-0.1 degrees

			Mechanical bearing accuracy

			0.01-0.05

			Conductive ring, mesh ring

			Carbon Brush, Silver Plated, Gold Plated (custom on demand)

Control mode* Remote control: advantages recommended custom remote control key function, control screen according to the setting program rotation, stop, power back to zero.

* Manual control, automatic cycle control, other wired control.

* Mobile phone control, computer control.

* Induction /AI control (custom development).

Software features

1. Support a variety of built-in programs and a variety of signals

2. Support background synchronous or asynchronous

3. Rotation at any Angle is supported

4. Support for third party control
