Name: P10 Led Display Board Frame Weld Free Tenon Mortise Steel Structure
Brand: CAIYI
SKU: Steel Structure
Price: 25 USD
Availability: InStock
Rating: 4.8 (166 reviews)

Product Details

Place of Origin: China

Brand Name: CAIYI

Certification: CE, FCC, ROHS

Model Number: Steel Structure

Payment & Shipping Terms

Minimum Order Quantity: 2pieces

Price: $25-$39

Packaging Details: Simple box, waterproof cabinet, die-cast aluminum cabinet

Delivery Time: 3-5days

Payment Terms: T/T, L/C, Western Union, Paypal

Supply Ability: 1000pieces per day

Get Best Price

Product Details

Product Description

Highlight:
                                                P10 Led Display Board Frame, Weld Free Led Display Board Frame, Steel Led Display Board Frame

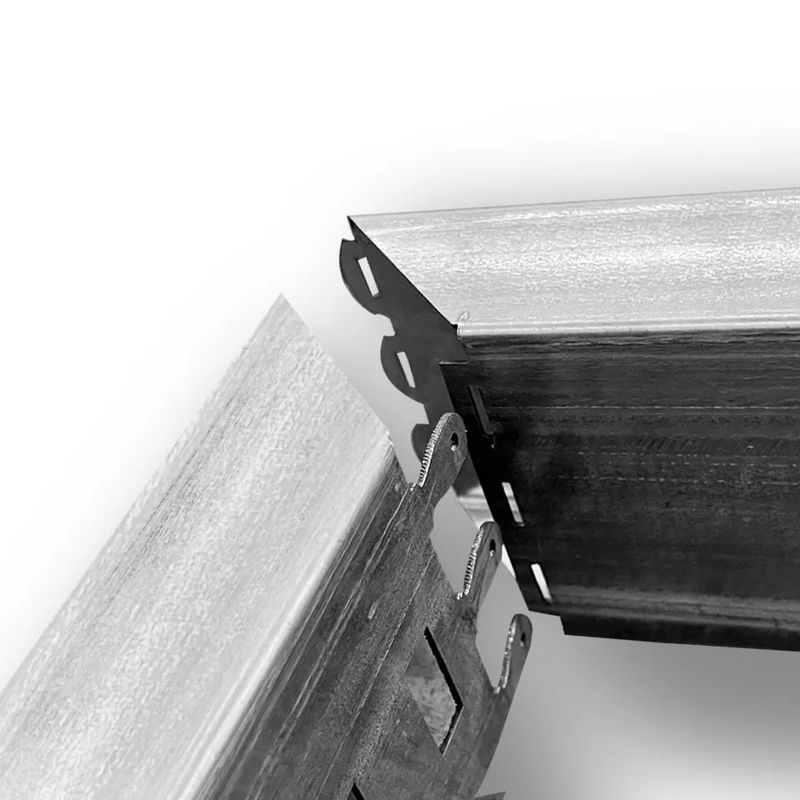

P10 Led Display Board Frame Weld Free Tenon Mortise Steel Structure

1. Overview

Mortise and tenon steel structure divided into full mortise and tenon steel structure and corner with half mortise and tenon steel structure

Mortise and tenon steel structure to reduce high energy consumption, high environmental pollution, free from the constraints of welding, opening and drilling, not affected by the construction personnel's connection technology level and construction site environment, size matching, Mortise and tenon steel structure is more safe and reliable and suitable for the future industrial development of steel member connector especially suitable for cold installation environment, in line with the national advocate of safe assembly operation mode.

2. product characteristics

Laser cutting, accurate size, no dislocation, save time, labour and money,

No need to weld, a hammer and a screwdriver! There is no need to hire another edge packer!

Corner add half mortise and tenon steel structure, this structure is the upgrade version of mortise and tenon structure!

3.technical characteristicsAll tenon and tenon steel construction:

First, insert the four sides and the middle column structure into the corresponding holes, hammer the mortise and tenon joints flat, insert a screwdriver into the round holes, hold the mortise and tenon joints, knock the screwdriver with the hammer, hammer the joints flat, form a main frame, fixed on the wall with corner code, and then insert 4020 square tube from the top down, the screen body is too high, can be installed with a horizontal bar, a screen structure is completed. Then put the stainless-steel card or aluminium card to the four sides, the whole screen body steel structure is completed!

Corner with half mortise and tenon structure:

First, insert the square pipe around the corner, hammer the mortise and tenon joint flat, insert a screwdriver into the round

hole, hold the mortise and tenon joint, knock the screwdriver with the hammer, hammer the joint flat, form a main frame, fixed on the wall with corner code, and then insert 4020 square pipe from the top down, the screen body is too high, can be installed with a horizontal bar, a screen body structure is completed. Then put the stainless-steel card or aluminium card to the four sides, the whole screen body steel structure is completed! The structure can also be used for magnetic edge profile, can also be used for embedded display!
All kinds of steel structures produced by the company are more safe and reliable and suitable for the future industrial

development of steel components connector, especially suitable for cold installation environment, in line with the national

advocate of safe assembly operation mode, reduce high energy consumption, high environmental pollution, free from the bondage of welding, opening and drilling, not affected by the construction personnel connection technology level and construction site environment, The size matches and the connection is perfect!
