Advertising Moving LED Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Lifting Screen
Application: Indoor
Type: LCD, Hd Advertising Screen
Supplier Type: Original Manufacturer, ODM, OEM
HS Code: 8531200000 Resolution: Customized Product Name: Led Video Displ
Warranty: 1year
Highlight:

Advertising Moving LED Screen

,

2K Moving LED Screen

,

Wall Mount Moving LED Screen

Basic Infomation
Place of Origin: CHINA
Brand Name: CAIYI
Certification: FCC,CE,ROHS
Payment & Shipping Terms
Packaging Details: Simple box, waterproof cabinet, die-cast aluminum cabinet
Delivery Time: 3-5 working days
Payment Terms: L/C, D/P, T/T, Paypal
Supply Ability: 1000sets per day
Product Description

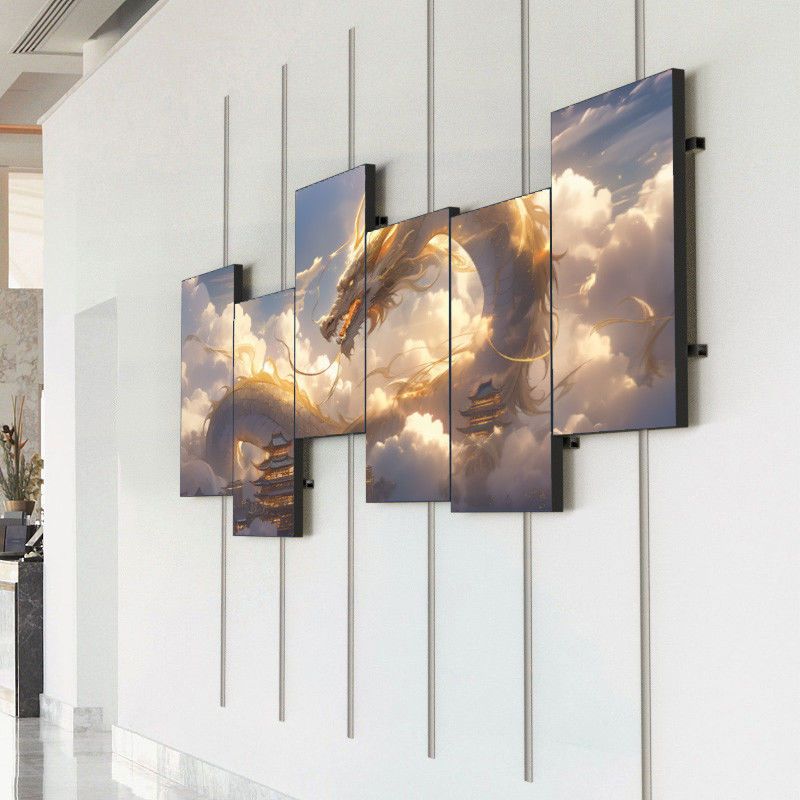

Advertising Moving LED Screen 0

Overview

Telescopic(3D robotic/Matrix) and lifting screen is a kind of multimedia motion display equipment based on the movement of mechanical arm. Its main principle is to drive the steel frame screen to reciprocate or display other actions on the lifting base through the motor. It's also multi-dimensional telescopic and rotating robot motion.

Telescopic (3D robotic/Matrix), lifting movement and display content can be asynchronous, can also be controlled by software program to achieve mechanical movement and screen video, graphic content synchronization.

Telescopic and lifting screen mainly includes the following parts: telescopic lifting base, telescopic lifting body display frame, controller system, display screen etc. External: other control equipment.



Working principle of LED telescopic and lifting screen

LED telescopic and lifting screen by the frame, mechanical transmission components, such as: electric telescopic cylinder, rack and pinion, electro-mechanical control system, mechanical transmission components by the control system control electric cylinder, rack and pinion drive LED display steel frame, to achieve a variety of movements.
Advertising Moving LED Screen 1

Advertising Moving LED Screen 2

Rotary core integration






telescopic, lifting screen
Name
Parameter number
Sheet metal, steel frame material
Steel pipe and plate: Q235, 304 stainless steel optional
Accuracy of mechanical installation
0.01-1.00
Stepper, servo motor + reducer
57-180 flange optional, power: 200w-7500w, suitable for reducer
Motor repeated positioning accuracy
0.01-0.03
Mechanical rotation positioning accuracy
0.01-0.1 degrees
Matrix assembly accuracy
10 units 0.1-3.0
Compound rotating electric ring and net ring
Carbon Brush, Silver Plated, Gold Plated (custom on demand)



Control mode
* Remote control: advantages recommended custom remote control key function, control screen according to the setting program
rotation, stop, power back to zero.
* Manual control, automatic cycle control, other wired control.
* Mobile phone control
* Induction /AI control (custom development).

Software features
1. Support a variety of built-in programs
2. Support display content and mechanical action asynchronous or synchronous
3. Support multi-angle and complex mechanical motion
4. Support remote control, mobile phone control, other wired control
5. Support for third party control

Motor motion controller function description:
Functions
Instruction
Number of control axes
uniaxial
Instruction feature
Arbitrary programmable (to achieve a variety of complex operations: positioning control and non-positioning control)
Output frequency
50 KHz (especially suitable for controlling subdivision drivers)
Frequency resolution
1Hz
Number of programming strips
Max 99 pcs
Output point
4 (photoelectric isolation arbitrary setting start, pause, zero; Do not need external start and stop signal, also can-do
detection input)
Input point
2 (photoelectric isolation)
Primary displacement range
-9999999~+99999999
Working state
Automatic running state, manual running state, program editing state, parameter setting state
Speed up and down curve
The biggest feature of this controller is that multiple curves can be set arbitrarily (speed up and speed down can be set
respectively to meet different requirements, such as fast speed up and slow down, slow speed up and fast down).
Display function
8-bit digital tube can display coordinates, delay, program, etc., indicator can show IO status, manual/automatic status
Automatic operation function
Programmable, through the panel keys and the electricity added to the terminal can control the start and stop of automatic
operation
Manual operation function
Adjustable position (manual point speed and step number can be set)
Parameter setting function
Set the take-off frequency, speed curve, reverse clearance, manual length, manual speed and return to zero speed
Program editing function
Programs can be inserted, deleted and modified at will
Return to zero function
Two-way automatic return to zero (some control can be written back to zero, in fact, is the program zero, the controller
mechanical zero, program zero, can be returned)
Programming instruction
16 instructions
Delay running instruction
Unique time control function, need to rely on delay to control motor operation, you can use T-LEN instruction
Program store
The controller supports storage of 60 processes
Power supply
DC12V-24V
